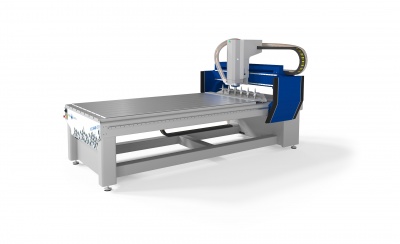

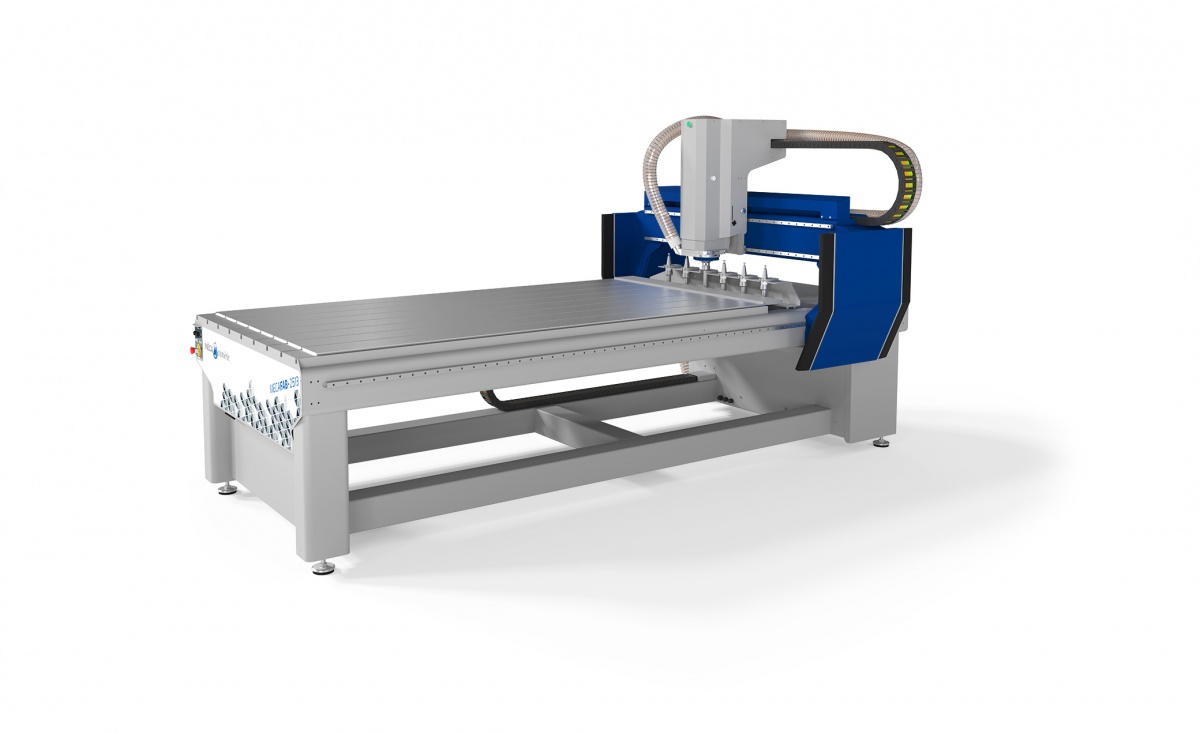

The milling machine range made for Fablabs and training sectors.

Thanks to its design and versatility, this equipment offers the combination of a controlled budget and impeccable quality for those involved in training or for manufacturing facilities such as Fablabs.



STRENGTHS



Complete and customizable equipment :

  • Several tables with material holding system
  • Automatic nozzle for chip suction
  • Tool cooling (optionnal)

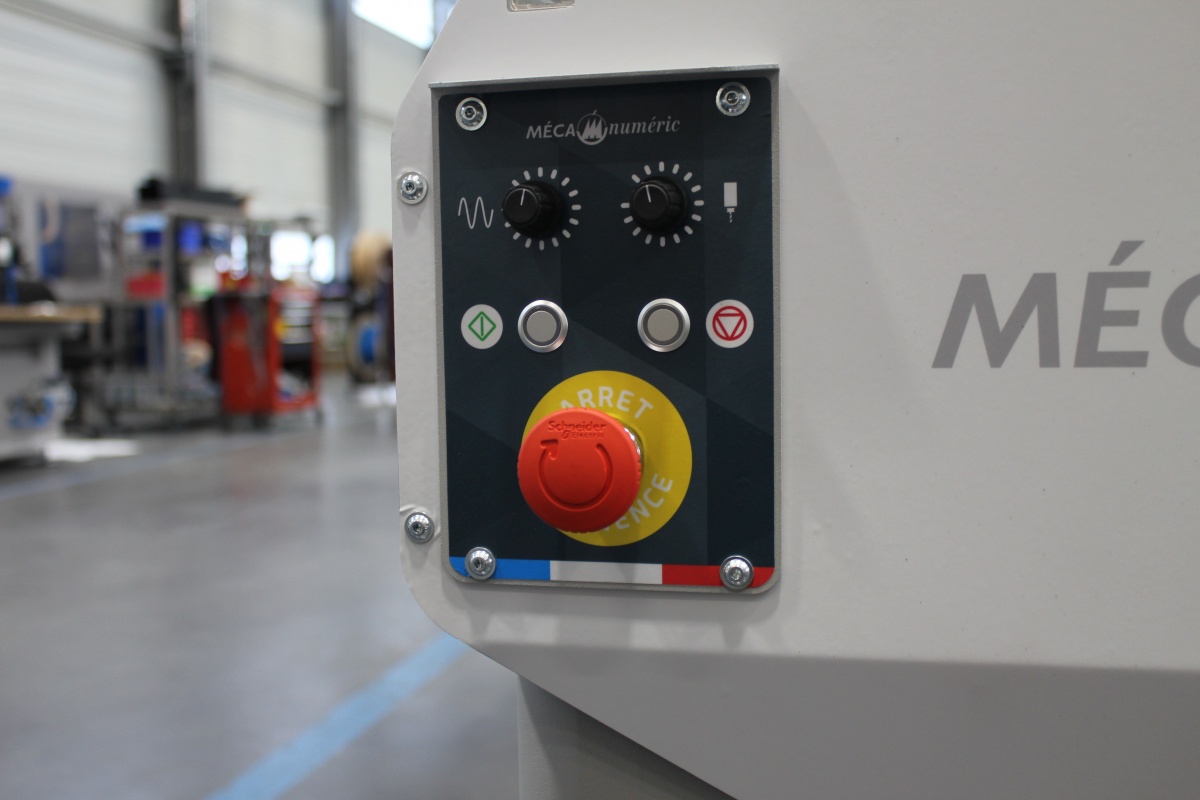

Secure machine for safe and easy operations



Maximum versatility to mill a wide range of materials :

  • Polymers: PMMA, HDPE, PS, PET, PETG, PU, PC, ABS, PVC… in solid or honeycomb panels
  • Wood and its by-products: MDF, TRESPA and other phenolic derivatives, natural wood, etc.
  • Light alloys: Aluminium, Brass, Copper, Zinc, etc.
  • Composites: Alucobond®, Dibond® and similar, Glass/Epoxy, Carbon/Epoxy, etc.
  • Honeycomb panels: Nida®, Nomex®, etc.
  • Machinable plates for molds and models
  • Mineral base panels for ITE

Power and robustness :

  • Monobloc chassis and mobile gantry in mechanical welded steel
  • Preloaded ball screw transmissions
  • Servomotors with very high resolution absolute encoders

TECHNICAL DATA

  • Structure : Monobloc chassis and mobile gantry in mechanical welded high inertia steel.
  • Table : Aluminium fixed table with consumable top cover in option or vacuum table in composite.
  • Guidance : Grinded prismatic rails and preloaded ball bearings.
  • Transmission : Ball screw with preloaded nuts on all axes.
  • Motorisation : Brushless motors with absolute encoders on all axes.



DIMENSIONS

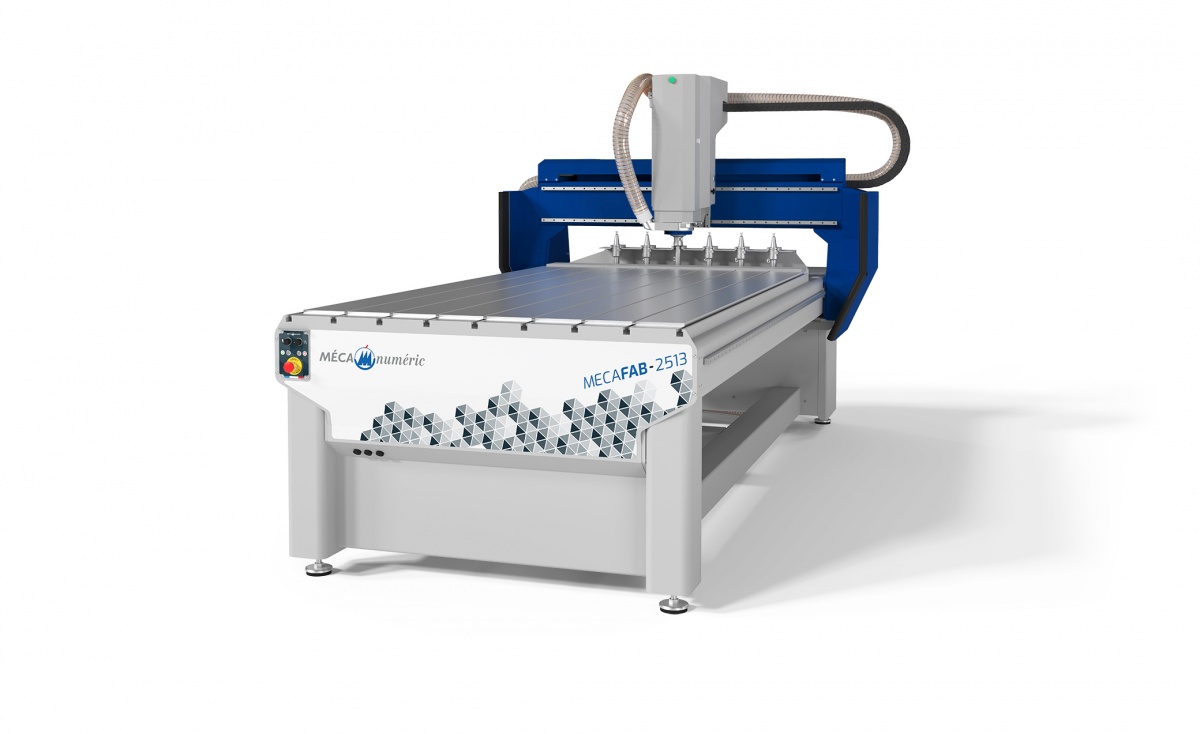

  MECAFAB 1013
ENTRY		 MECAFAB 1013
ATC		 MECAFAB 2513
ENTRY		 MECAFAB 2513
ATC
X axis travel in mm 1050 1050 2550 2550
Y axis travel in mm 1360 1360 1360 1360
Z axis travel in mm 200 200 200 200
Passage between uprights:
over the first 100 mm / the entire height above the table		 1550 / 1370 1550 / 1370 1550 / 1370 1550 / 1370
Passage under gantry or under spindle nose in mm 200 200 200 200
Length in mm (pumps not included) 2300 2300 3800 3800
Width in mm 2170 2170 2170 2170
Height in mm 2100 2100 2100 2100
Average weight in kg 1500 1500 2250 2250



HIGH FREQUENCY ELECTROSPINDLE



  HSD AT/MT 1090-100 HSD ES 950-H6161H
Maximum power S1 - S6 in kW 4,5 - 5 3,8 - 5
Max torque S1/S6 (40%) 2,4 / 2,7 Nm to 18 000 rpm 3 / 3,6 Nm to 12 000 rpm
Rotation speed rpm 0 to 24 000 rpm 0 to 24 000 rpm
Coolant Air Air
Cooling Self-ventilation Forced ventilation
Tool changing Manual with ER32 collets Automatic
ISO30 cones + ER32 collets
Circuits boards

Circuits boards

Read more
Telephone casing model

Telephone casing model

Read more
Model made by milling

Model made by milling

Read more
