NORMAPROFIL - M series

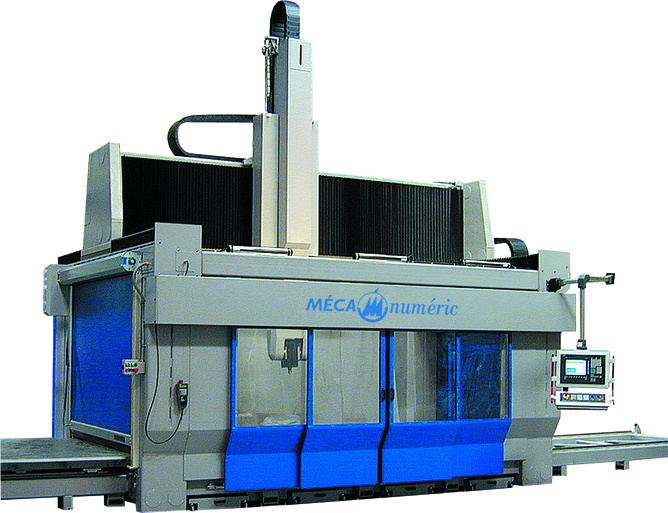

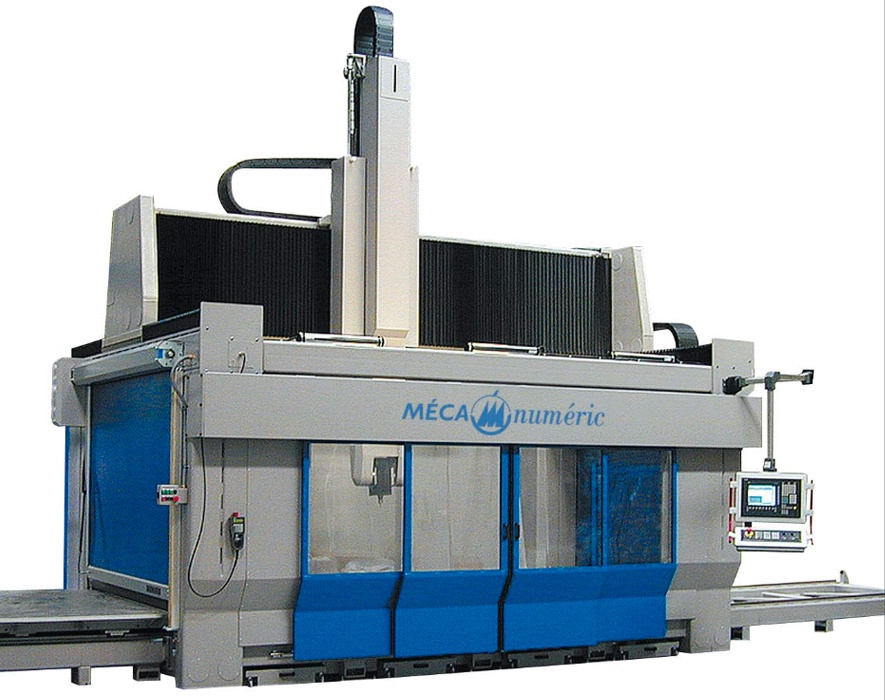

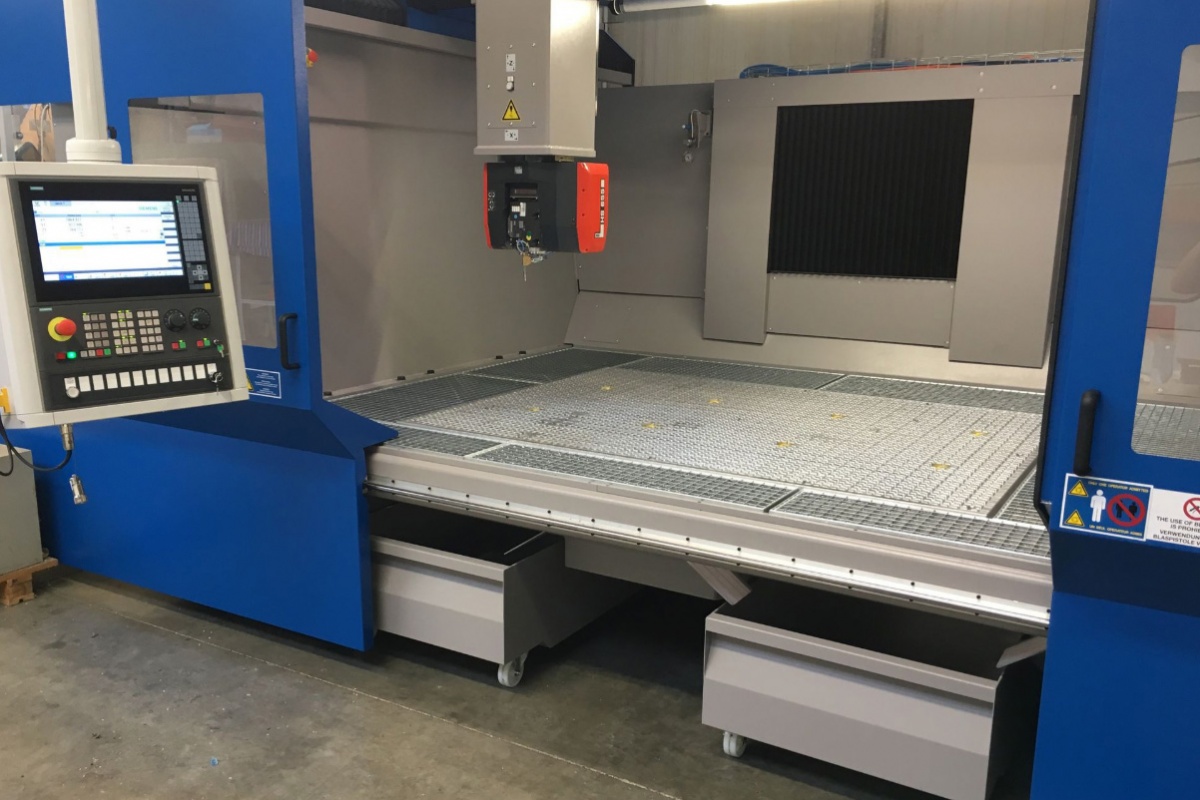

Fixed table, mobile gantry facing the operator.

  • Description
  • Technical datas
  • Fields of activity

Realization of models and molds or 5-axis machining of thermoformed, rotational molded parts ...


TECHNOLOGIES

  • Transmission by ball screw on the 4 Cartesian axes (X1, X2, Y, Z)
  • 2 rotary axes (C: +/- 200 ° and A: +/- 200 ° depending on the electrospindle)



5-axis milling machine optimized for machining the following materials:

  • Plastics and composites,
  • PU and PS foam etc ...
  • Aluminum (depending on the type of spindle),
  • Synthetic resins,
  • Wood and wood products,
  • Brass and alloys (depending on the type of spindle),



SOME OF THE POSSIBLE OPTIONS

  • Automatic doors
  • Vacuum plate for holding parts or tools (vacuum technology by side channel turbines or by vacuum pump)
  • Static tool magazine (6,10,15 tools)
  • Magazine mounted under gantry (for M3015 only) 12 tools
  • Tool measuring probe
  • Sound-absorbing full cover
  • Double table system for loading / unloading in masked time (for M3015 only)
  • Other useful formats on request

NC and Motorization

  • SIEMENS SINUMERIK 840 Di numerical control: X, Y, Z, C, A axes
    STN 10.4 inch OP010 color screen.
    Brushless motorization type 1FK7 with digital variators.
    Air-conditioned electrical cabinet.

  • SIEMENS SINUMERIK 840D digital control: X, Y, Z, C, A axes
    STN 10.4 inch OP010 color screen.
    Brushless motorization type 1FT6 with digital drives.
    Air-conditioned electrical cabinet.

  • NUM 1050 DIGITAL digital control: X, Y, Z, C, A axes
    12 inch TFT flat screen.
    MP03 operator panel.
    BPH brushless motorization with digital variators.
    Air-conditioned electrical cabinet.

SPINDLES





Power (S1) W / HP

Rotation max Cooling Tool Tightening Tool change
HSD ES350DS  6500 / 9 36000 water ER20 Manual
HSD ES779L-12 10000 / 14 24000 water   Automatic
HSK E40
HSD ES789L-16 16000 / 22 24000 water   Automatic
HSK F63



DIMENSIONS



  M1510

X stroke

2100
Y stroke 1480
Z stroke 750
Parts for racing motorcycles

Parts for racing motorcycles

Parts for the train industry

Parts for the train industry

Aeronautic seats

Aeronautic seats

Aircraft interior furnishing

Aircraft interior furnishing

Side windows

Side windows

Bus parts

Bus parts

Parts for trams

Parts for trams

Parts for subways

Parts for subways

Electric vehicles parts

Electric vehicles parts
