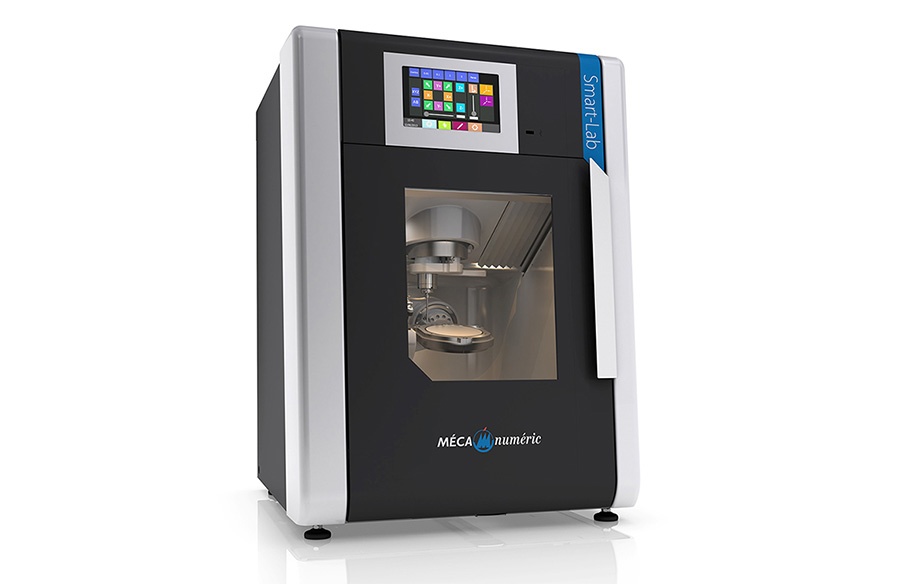

SMART-LAB
Our Smart-Lab solution has been designed for intensive and accurate machining of plastic composite resins, electronic samples, brass or aluminum pieces, PPMA parts.
- Description
- Technical datas
Thanks to its built-in compressor, SMART-LAB requires only an electrical socket to operate. It can be placed on its technical cabinet, which includes a silent cyclonic suction system for greater manoeuvrability.

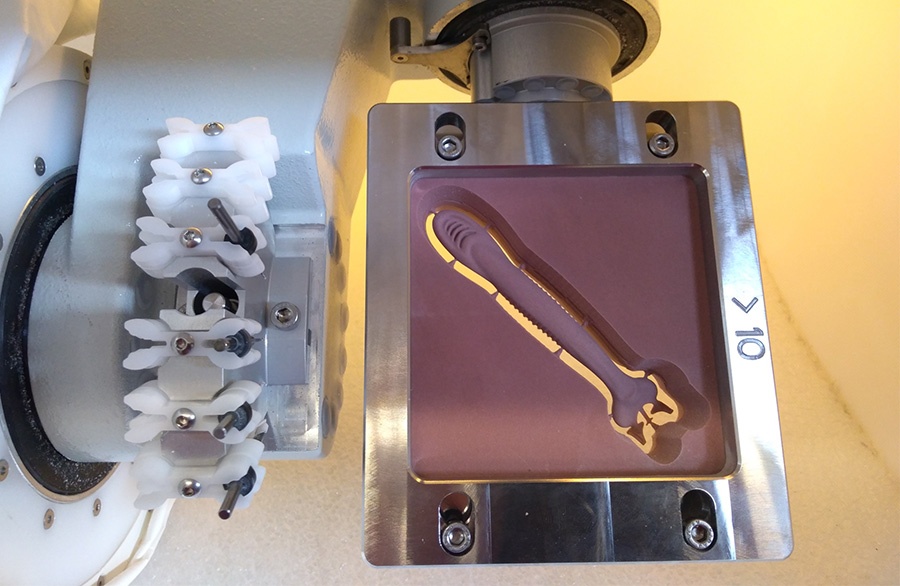

This versatile machine can easily machine a wide range of materials in 4 and 5 axes, wet or dry: aluminium, brass, composite resins, PMMA, WAX, etc.
It is also compatible with any computer-aided manufacturing system that delivers NC code.
HIGHLIGHTS :
- 4 and 5-axis machining of soft materials and metals: aluminium, brass, etc.
- Open to all CAM software.
- Small footprint thanks to original choice of kinematics.
- Precision thanks to high-quality kinematics: ball screws and ground rails.
- Powerful 500W - 60,000rpm spindle and brushless servomotors.
- Simplicity thanks to its colour touch screen
- Autonomous thanks to its integrated compressor
- The know-how of Mécanuméric's design, manufacturing and after-sales teams.
- Tool diameters from 3 to 0.5 mm.
- Standard consumables format.
| SMART-LAB | |
| Number of axis | 5 |
| Angular maximum for the rotary axis | 4 : +- 30° / 5 : 0 > 180° |
| Brushless motors | √ |
| Spindle 500W at 60000 tr/min | √ |
| Automatic tool changing system | √ |
| Number of tools in changer | 12 |
| Tooling measurement system | √ |
| Tooling breaking sensors | √ |
| Tooling wearing sensors | √ |
| Water cooling | √ |
| Dimensions L x P x H when door closed - mm | |
| Weight in kg | 100 |
| Com Ports | 1 USB + 1 Ethernet |
| Electrical Tension | 230 VAC 50/60 Hz |
