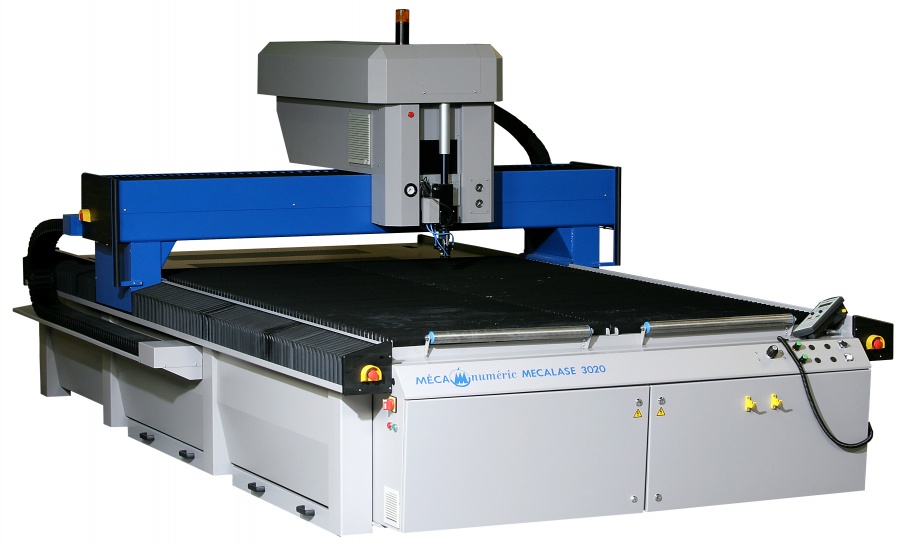

MECALASE

TECHNOLOGIES :

• Transmission by 4 ball screws (2 ball screws on X axes), numerical Z axis
• Motorisation : 4 DC servomotors with continuous current
• Guidance : precision linear rails with preloaded ball slides
• Numerical control : Power Automation MECANUMERIC CN7000, ISO code
• Sealed CO2 laser driven under mobile gantry and only one reversing mirror towards the focusing head : easy maintenance and low operating cost.
• FOMEC focusing head : focus lens 2,5 or 5 inches with coaxial suction
• Fume suctions by table divided into sectors with automatic zone selection
• Standard table in anodized aluminium bars and anti reflecting profiles
• Numerous CO2 laser sources available

CUTTING EQUIPMENT OPTIMIZED FOR MACHINING OF FOLLOWING MATERIALS WITH
STANDARD FOCUSING HEADS :

• Acrylic
• Plastic materials
• Wood and by-products

THE UTILIZATION OF A FOCUSING HEAD WITH HIGH PRESSURE LENS GIVES THE POSSIBILITY
TO CUT IN ADDITION :

• Soft steel : thickness 4 mm with 300W, 6 mm with 600W
• Stainless steel : thickness 1,5 mm with 350W, 3 mm with 600W

OPTIONS :

• Vision registration/compensation system by camera (GTK, OPTISCOUT)
• PRECITEC high pressure focusing head PRECITEC for steel cutting.
• Filtration system and fume treatment.
• Aluminium honeycomb special tables.
• Interchangeable tables for loading / unloading in concealed time.
• Automatic compensation system of flatness defects.
• SIEMENS numerical control and SIEMENS servomotors.
• Complete safety enclosure.
