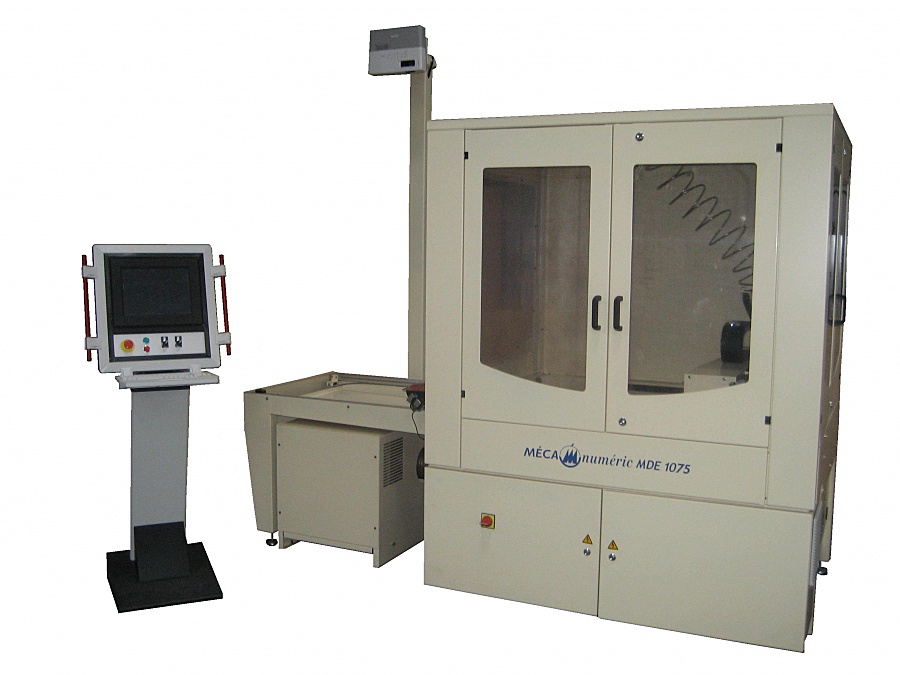

The MDE range allows cutting with very high pressure pure water. Available with different pumps and options, it is particularly used by industrial players in the textile and leather goods industries.
SOME OF THE POSSIBLE OPTIONS
- Suction of cutting mists (cutting with pure water)
- Closed circuit water cooling system for HP pump
- Booster pump (booster pump for water supply to the THP pump
- Water softener
Structure
- frame single block in welded steel
- mobile gantry in welded steel
- stainless steel tank
- plastic or aluminum honeycomb coating

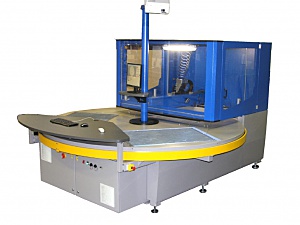

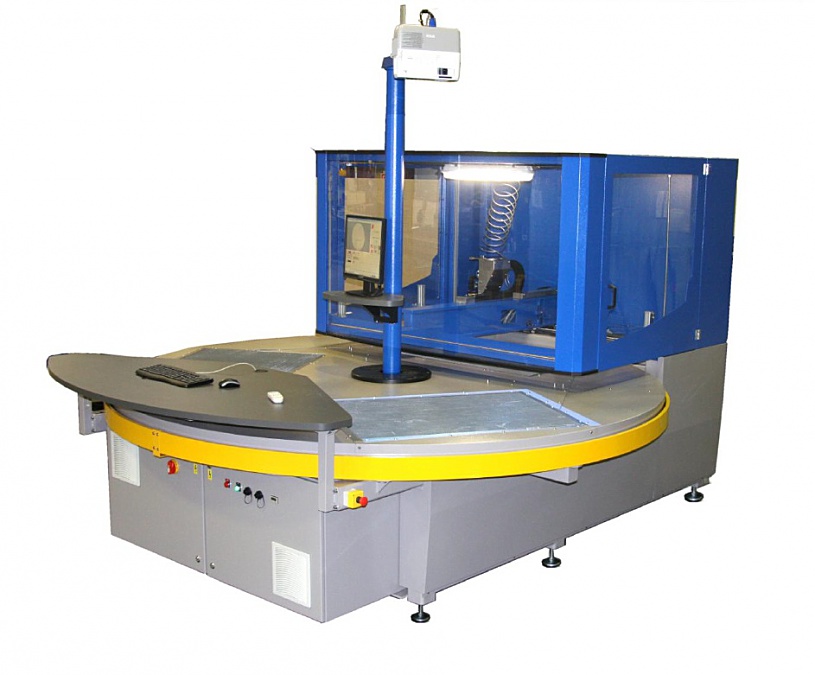

- 3-turn rotary table for cutting / loading and simultaneous nesting / unloading (MDE-R only)
Kinematics :
- guidance by stainless steel precision linear rails with preloaded ball slides
- XYZ transmission by pre-loaded ball screws (double X-axis motorization)
- motorization by AC brushless motors
- rotative table with cross-roller crown (MDE-R only)
Numerical control :
- Numerical control MECANUMERIC CN7000 ISO with 40 Gb hard disk
- MHI on control desk with a 15-inch touch screen
- Data input by Ethernet link, USB port
Features :
| TYPE | MDE | MDE-R |
| X-axis travel in mm | 1005 | 1050 |
| Y-axis travel in mm | 755 | 750 |
| Z-axis travel in mm | 75 | 50 |
| Max. speed in mm/sec | 30 | 40 |
| Acceleration in m/s² | 2 | 2 |
| Accuracy in mm | 0,08 | 0,1 |
| Repeatability in mm at 20°C +/- 2°C | 0,05 | 0,05 |
| CUTTING HEAD | ||
| Cutting head KMT AQUALINE | x | |
| VHP PUMP | ||
| VHP KMT SL-V 15 pump – power 15 HP (10kW) maximum flow 1,2 l/min at 3800 bars (55000 PSI) |
x | |
| VHP KMT SL-V 30 pump – power 30 HP (22 kW) maximum flow 2,3 l/min at 3800 bars (55000 PSI |
x | |
| OPTIONS AND ACCESSORIES | ||
| Aspiration of the fogs of cutting (cutting to pure water) | x | |
| Water cooling unit in closed circuit | x | |
| Booster pump (overpressure system for VHP pump water supply) | x | |
| Water softener | x | |
| ENERGY | ||
| Air supply | 3 m3/h | |
| Power supply | 400V 3-phase 50 Hz + earth |
|
