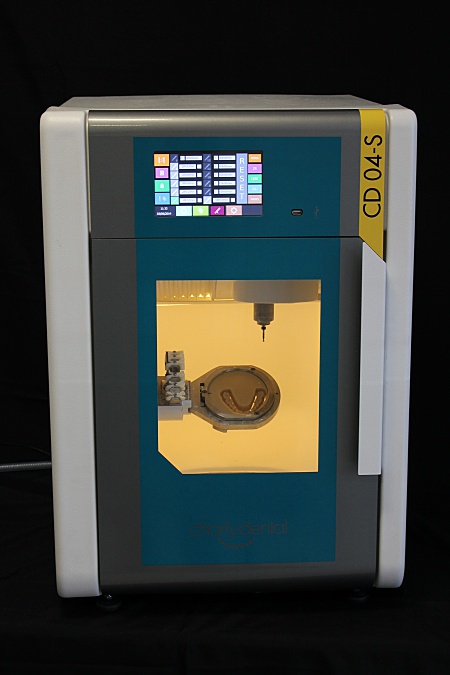

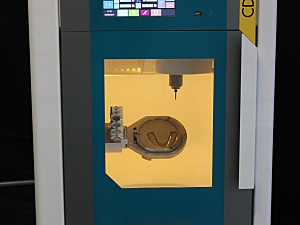

CHARLYDENTAL CD04-S

Milling/grinding machines for dental prostheses available in versions 4 positioned axes, perfect for a simple and fast daily production of prostheses in soft materials and ceramics, with dry or lubricate tool.

  • Description
  • Technical datas
  • Fields of activity

Thanks to their very compact dimensions and to the original choice of  kinematics, they offer a maximum of flexibility for a minimum of space.

They are equipped with an open CAD/CAM system which can be used with the main scanners, CAD/CAM software and consumables used in the dental field.



Other highlights of this concentrate of innovation totally designed and manufactured in France  :



• Power reserve by 500W – 60000 rpm spindle and brush-less servo-motors

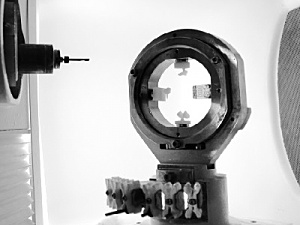

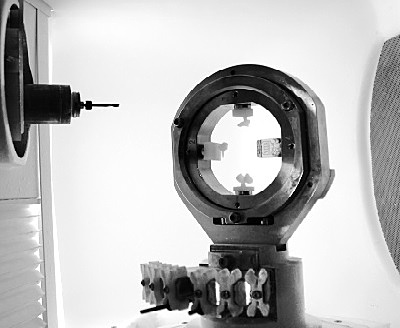

• Flexibility and accuracy of milling/grinding with angulation of the rotary axes

• 4th axis : +/- 30°

• Accuracy by high quality kinematics, ball-screws, and rectified rails

• Simplicity of use thanks to the colour touch screen and its driving friendly software

• High performance automatic monitoring of the tools and the brother-tools changes, wearing and tools breaking detections

TECHNICAL CHARACTERISTICS

  • Brushless servo motors
  • Spindle 500 W 60,000 rpm
  • Automatic tool change (with 12 tools in the changer)
  • Precision measurement of tool length
  • Tool breakage detection
  • Tool wear detection
  • Integrated suction sensor
  • Communication port: 1 USB and 1 ETHERNET
  • Power supply: 230 VAC 50/60 Hz

DIMENSIONS



  CD04-S
Lenght 542
Widht 600
Height 736
Weight 90
