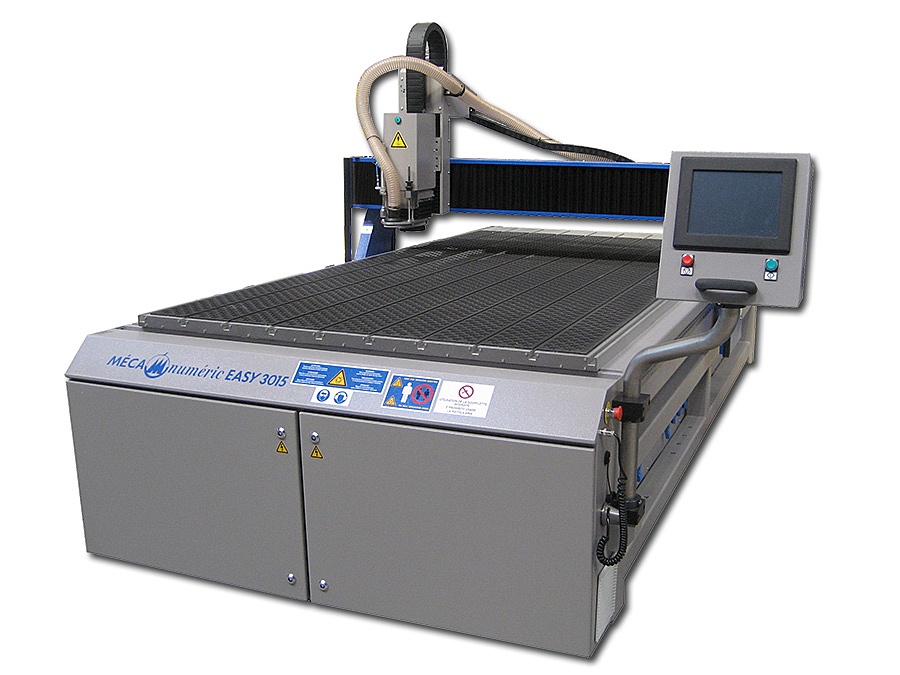

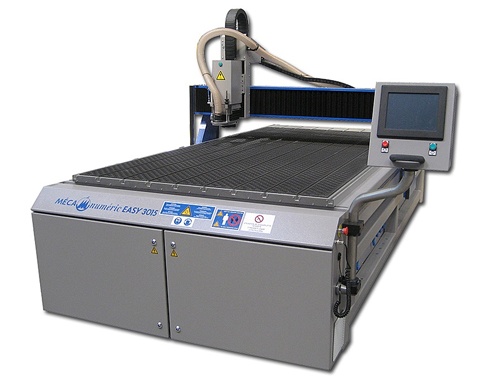

MECAEASY

Faster, endowed with a stiffened frame and gantry, equipped with more powerful spindles, the MECA EASY will meet your most demanding productions in 2D as in 3D

  • Description
  • Technical datas
  • Fields of activity

STRENGHTS

  • Mono-bloc frame in high inertia welded steel and mobile gantry in steel.
  • Milling speed up to 18m/min
  • Plate : fixed table made of wide section of aluminium profiles .
  • Guiding by grinded rails and preloaded circulation ball bearings.
  • Transmission by accuracy ball screw on the 3 axes.

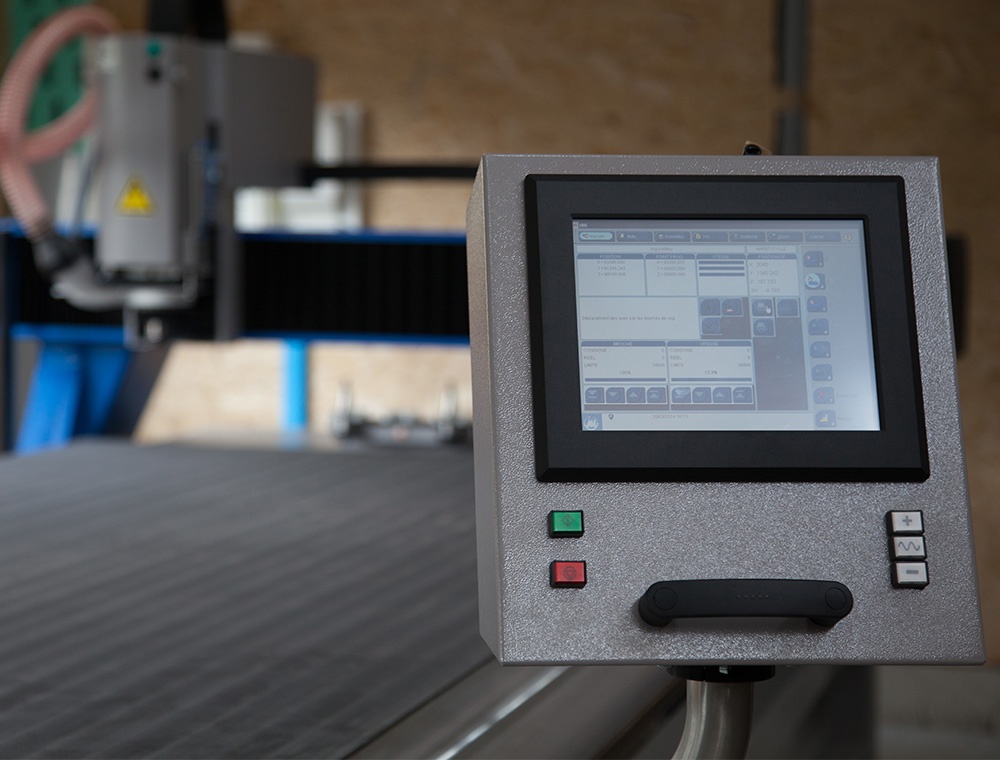

  • CN7000 digital monitoring with colour touch screen and motorization by brush-less servo-motors.
  • A range of 8 formats for the versatility.
  • Z 350 option for the 3D applications.
  • Quality and performances matched to the production.
  • The simplicity of use
  • Compliant with the European safety directives.
  • Many options : servo-motors "brush-less", micro- lubrication, automatic tool changer, vacuum table (with turbine or vacuum pump), high frequency spindle, engraving spindle with nose follower, fourth axis.



OPTIONS

  • Automatic aspirating nose
  • Tool cooling system
  • Industrial chip extractor
  • Camera tracking vision
  • Multi-tool head for knife cutting
  • 4th axis horizontal divider
  • Protective enclosure
  • Automatic door...

TECHNICAL DESCRIPTION

  • Structure: high inertia steel welded frame and gantry, fixed table.
  • Guidance: grinded steel rails and preloaded ball bearings.
  • Transmission: high precision ball screw on all axes.
  • Motorisation: AC Brushless servo motors



DIMENSIONS

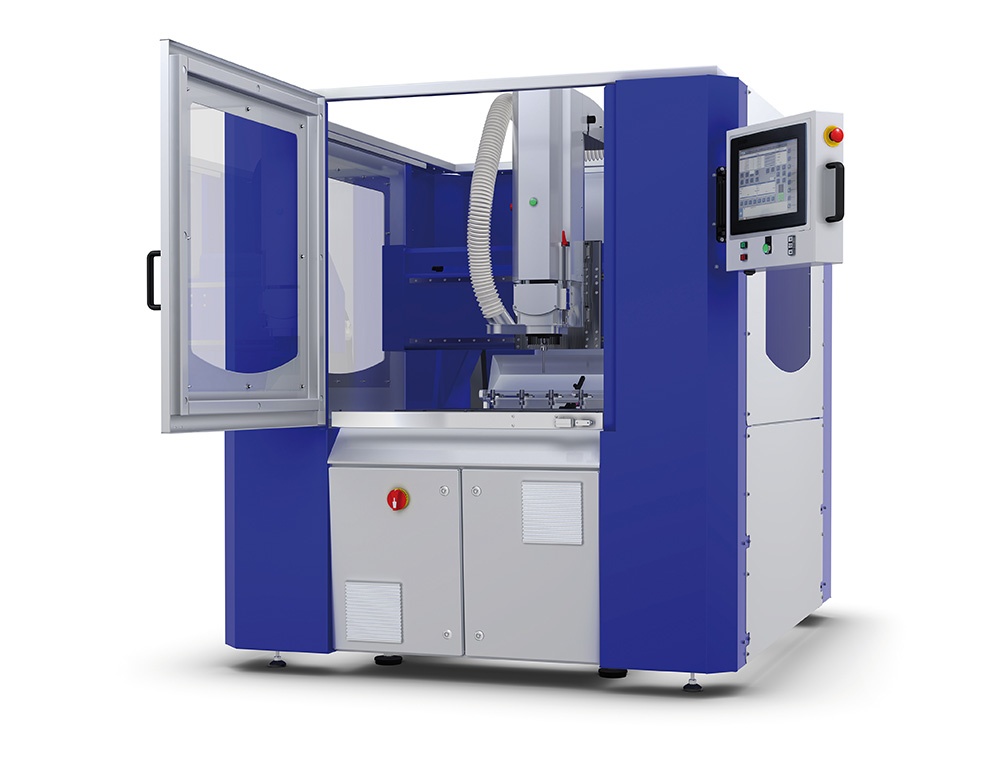

  ME 0507 ME 0710 ME 1007 ME 1510 ME 3015
X stroke  520 720 1050 1520 3020
Y stroke  750 1020 750 1050 1520
Z stroke  200/350 200/350 200/350 200/350 200/350
Maximum material width 900 1250 900 1250 1650
Passage under gantry 210/360 210/360 210/360 210/360 210/360
Building façades

Building façades

Lights

Lights

Milling of foam

Milling of foam

Wooden low-relief

Wooden low-relief

Marquetry

Marquetry

Jewels creation

Jewels creation

Furniture

Furniture

Horseshoe cutting

Horseshoe cutting

Wood cutting for marquetry

Wood cutting for marquetry

Masks

Masks

Decorative friezes

Decorative friezes

Ceramics

Ceramics

Cases and boxes

Cases and boxes

Laser cutting and engraving

Laser cutting and engraving

Rapid prototyping

Rapid prototyping

Circuits boards

Circuits boards

Telephone casing model

Telephone casing model

Raster engraving on precut granite

Raster engraving on precut granite

Part for POS application

Part for POS application

Relief sign in wood by product (MDF)

Relief sign in wood by product (MDF)

Model made by milling

Model made by milling

Podiatry and orthopedics

Podiatry and orthopedics

Shoes

Shoes

Marking

Marking

Funeral marking

Funeral marking

Bathroom elements

Bathroom elements

Structure parts and tooling

Structure parts and tooling

Kitchen elements

Kitchen elements

Plastics and PVC frames

Plastics and PVC frames

Aluminium frames

Aluminium frames

Household appliances

Household appliances

Brackets

Brackets

Aircraft interior furnishing

Aircraft interior furnishing

Side windows

Side windows

Plastics machining

Plastics machining

Health case or box

Health case or box

PVC signboard

PVC signboard
