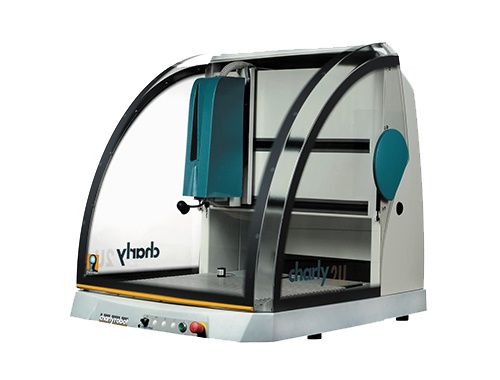

Charlyrobot small vertical milling machine tool with moving table

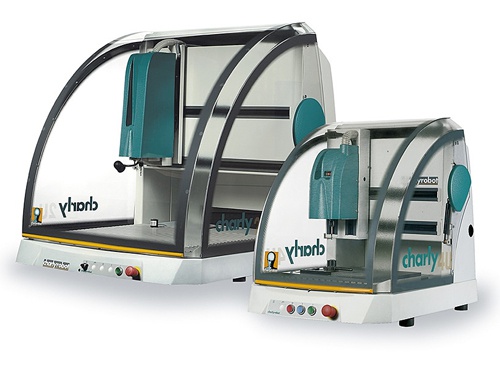

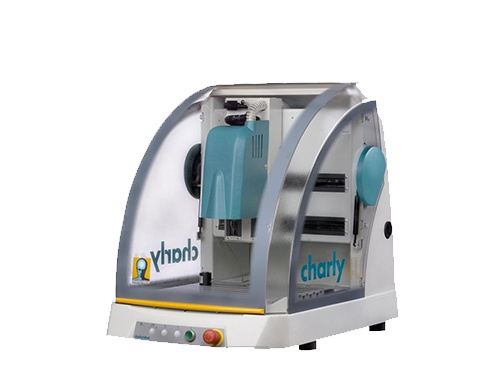

Charly4U - Charly2U

Thanks to their simplicity of use, to their amazingly fine milling results and to their wide surface of milling, the charly4U/2U are a reference in their field with their capacity to mill metals such as aluminium, brass, for a limited budget

  • Description
  • Technical datas
  • Fields of activity

The strengths

  • Working surface 600 x 420 mm.
  • Z travel 280 mm.
  • High frequency spindle with integral electronic variable speed drive.
  • Steel structure.
  • Double guides by rectified steel prismatic rails with ball recirculation shoe.
  • Integrated greaser on each axis.
  • Design.
  • 3 dynamic axes interpolation.

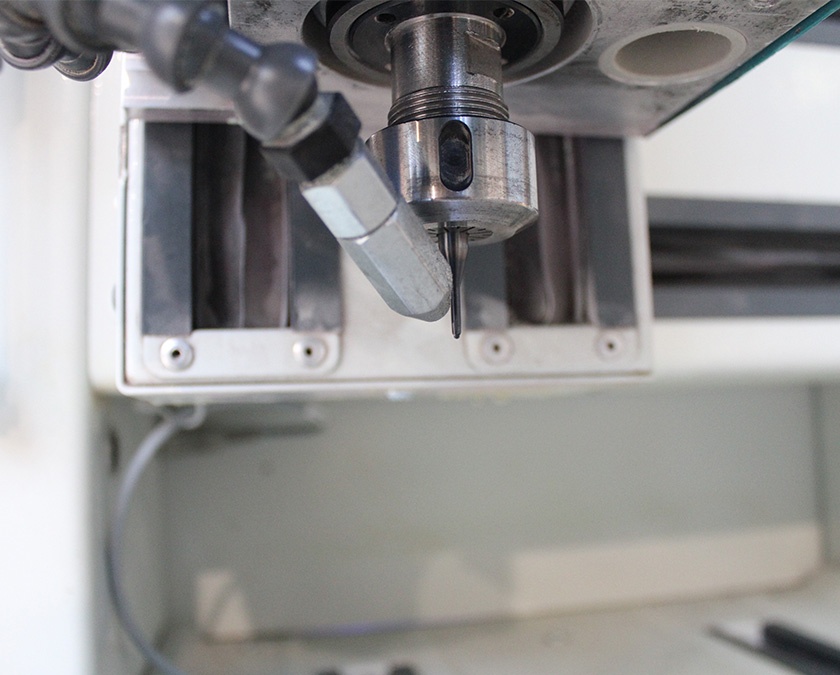

  • Various options: microlubrication, vacuum table, fourth axis, reinforced protection against dust for carbon machining applications.
  • Compliant with European safety directives.

CHARACTERISTICS

  Charly2U Charly4U
X stroke 600 310
Y stroke 420 220
Z stroke 280 160
Table dimensions (X xY) 640 x 680 375 x 320
Architecture Portique fixe avec table mobile en Y Portique fixe avec table mobile en Y
Maximum speed 100 mm/s 100 mm/s
Width 985 620
Depth 1300 850
Height 1070 730
Average weight 170 81
Bronze medal

Bronze medal

Lights

Lights

Milling of foam

Milling of foam

Jewels creation

Jewels creation

Furniture

Furniture

Horseshoe cutting

Horseshoe cutting

Marquetry

Marquetry

Wood cutting for marquetry

Wood cutting for marquetry

Masks

Masks

Laser cutting and engraving

Laser cutting and engraving

Circuits boards

Circuits boards

Telephone casing model

Telephone casing model

Raster engraving on precut granite

Raster engraving on precut granite

Part for POS application

Part for POS application

Model made by milling

Model made by milling

Podiatry and orthopedics

Podiatry and orthopedics

Marking

Marking

Plastics and PVC frames

Plastics and PVC frames

Aluminium frames

Aluminium frames

Household appliances

Household appliances

Brackets

Brackets
