MDA : A water jet cutting equipment range fully adapted to food cutting


This new product range allows the cutting of food products such as pastries, fish, catering products, sandwiches…

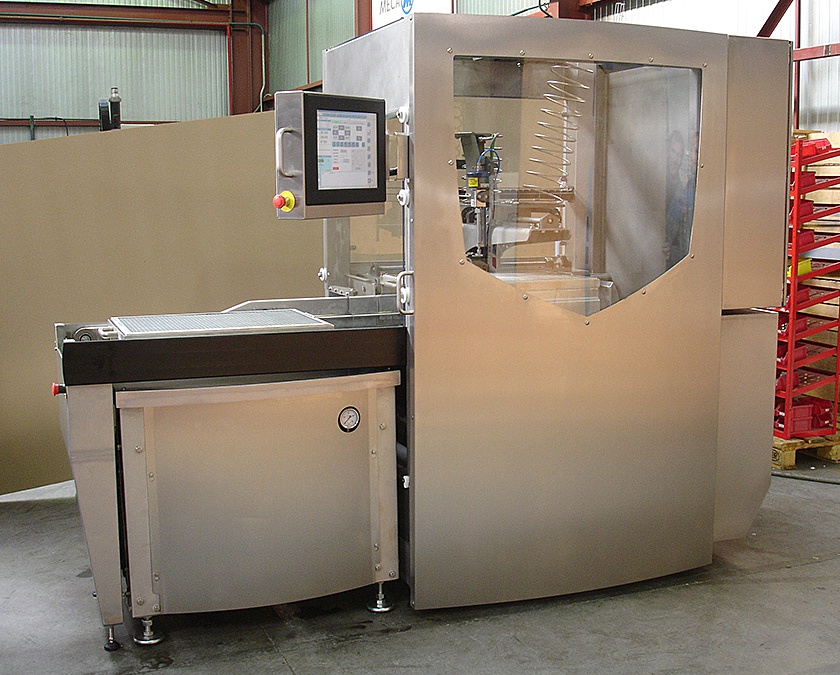

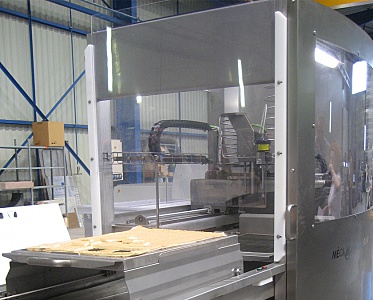

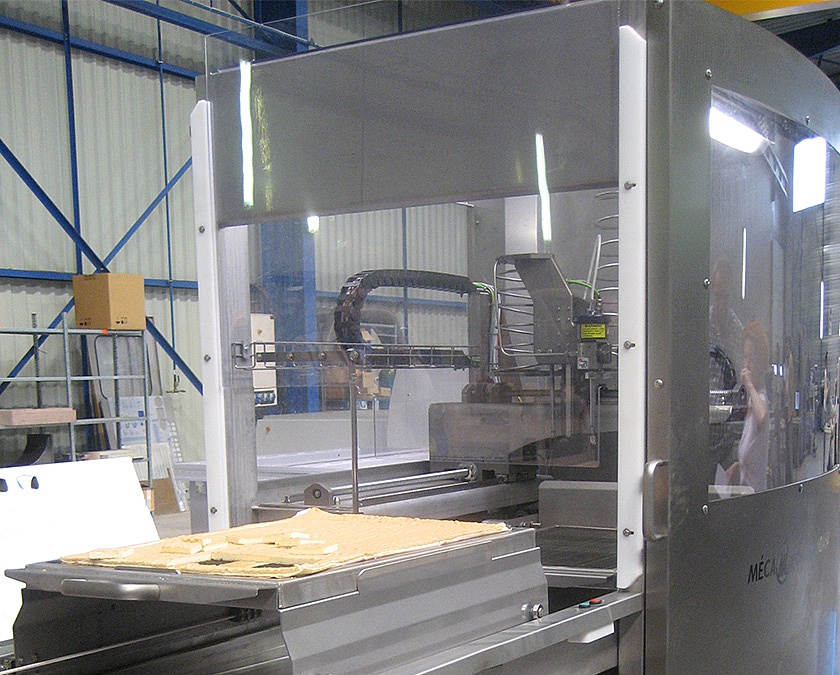

Based on a welded mono bloc frame and a mobile gantry in stainless steel, respecting the sanitary constraints of the food industry, the MDA offers a mobile table for a loading and unloading in concealed time.

The very high pressure KMT H2O generator unit is integrated in the equipment or removable.
The implemented technologies originating from the precision mechanics guarantee the longevity and the performances in the long time.

The driving is realized by the MECANUMERIC CN7100 numerical control with Human Machine Interface (HMI), color touch screen, under Windows XP Pro, USB connections, Ethernet and Internet connections for the remote maintenance.

This equipment is in conformity with the food security and health rules. Their main advantage is the absence of blade. Cutting is done without any contact with the product. Moreover, it is easy to control the contact water, which decreases the bacteriological risks. The water jet cutting also brings a big flexibility in the variety of the food
products and forms to be cut. From fresh products to frozen products, we have various applications : meat transformation (frozen fish, croquettes, or chicken bits, etc…), vegetable slicing (celery, mushrooms
etc…), industrial pastry portions…

TECHNICAL CHARACTERISTICS

  • Maximum speed in mm / sec: 500
  • Acceleration in m / s²: 3
  • Resolution in mm: 0.005
  • Repeatability in mm at 20 ° C +/- 2: 0.05 X-axis travel in mm: 620

DIMENSIONS

  MDA
X stroke 620
Y stroke 420
Maximum height of the product 70
Maximum dimension on rack 620 x 420 x 70
Lenght 2660
Width 1230
Height 2000
Weight (without pumps) 500

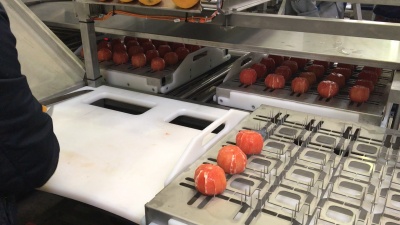

Citrus cutting

Citrus cutting

Meat cutting

Meat cutting

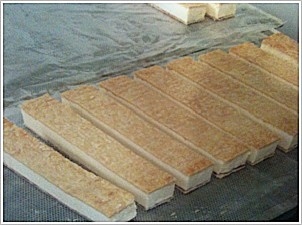

Fresh or frozen cakes cutting

Fresh or frozen cakes cutting

Fruits and vegetable cutting

Fruits and vegetable cutting

Cocktails

Cocktails

Bakery pastries

Bakery pastries
