PUREJET

Water jet machine designed to simplify cutting of smooth or light material

  • Description
  • Technical datas
  • Fields of activity

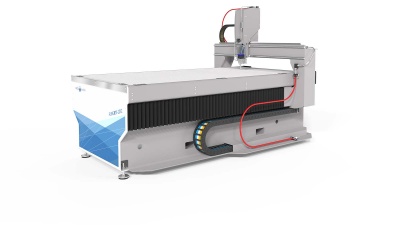

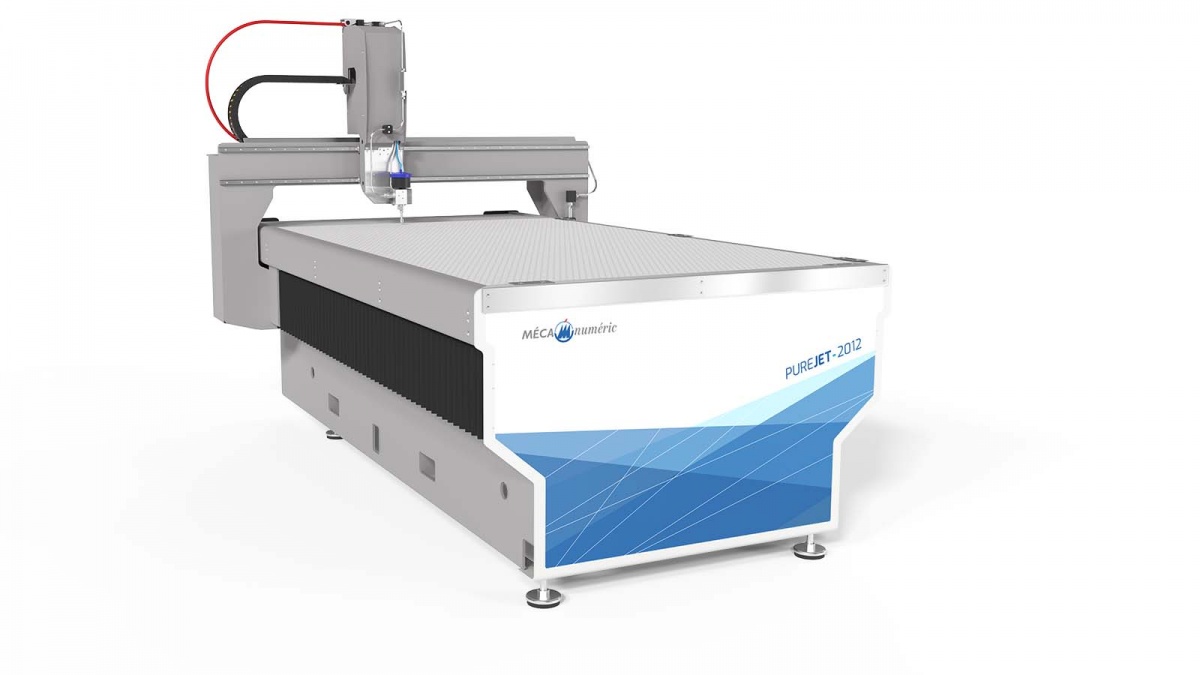

Water jet machine to simplify cutting of smooth or light material designed for industrial use



Entirely customizable and available in various sizes, PUREJET range is perfect for many materials :



  • Rubber and derivatives
  • Foams of all densities
  • Leather and similar
  • Low-thickness plastics and derivatives
  • Rock wool, glass wool, plasterboard, etc.
  • Cork and thin natural wood (marquetry, etc.)
  • Solid or corrugated paper and cardboard, composites NOMEX® type or similar
  • Woven or non-woven canvas, tarpaulins, etc.
  • Pre-impregnated fabrics and mats of glass or carbon for the production of composite parts



STRENGHTS



Cuztomizable equipment

  • 3 differents sizes
  • Single or multi-heads
  • Visible laser
  • Additionnal modules for environment and operator protection

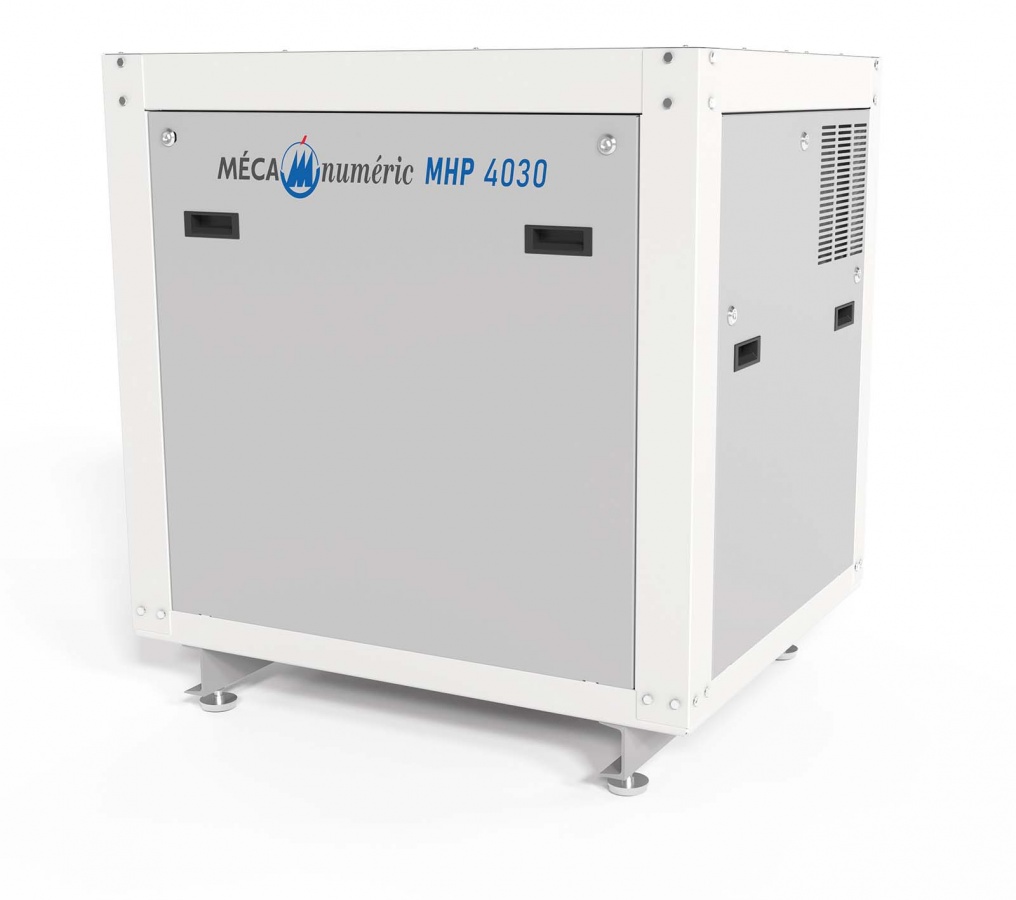

4136 bars HP Pumps created for this range

  • Oil/water intensifier for 4000 bar continuous pressure with low maintenance cost
  • 10HP version available in 230V single phase power supply

Optimized space

  • Compact format
  • Positionning stops
  • HP flexibles hoses

Latest generation digital control

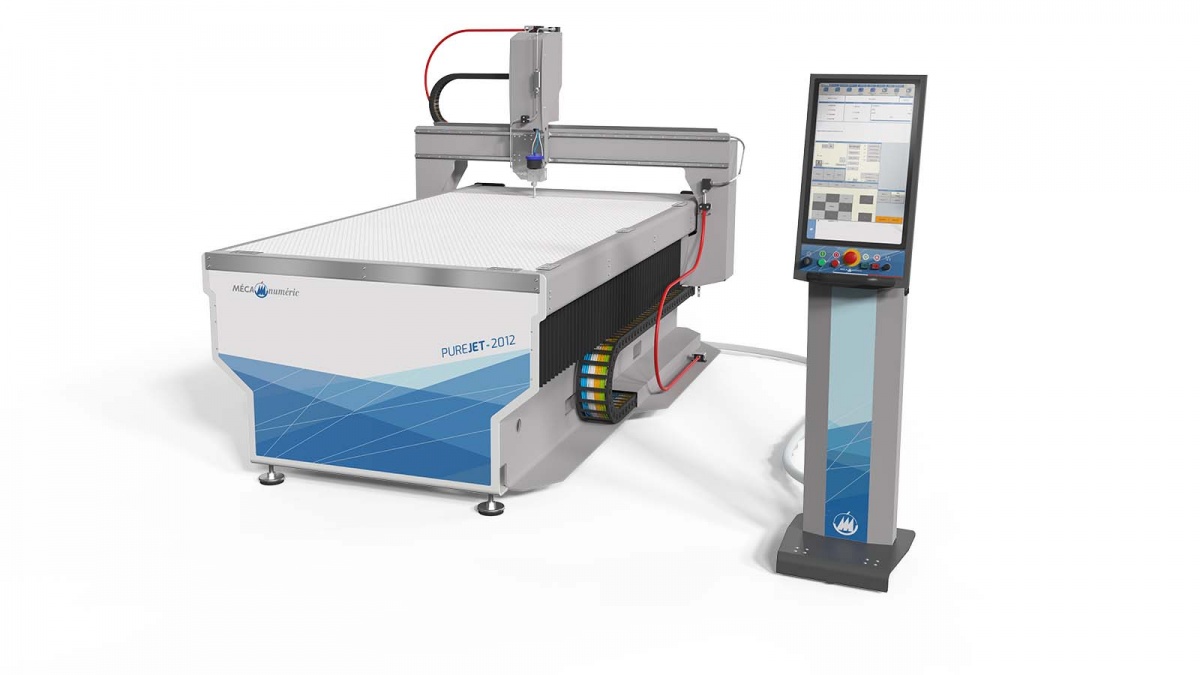

  • 21 inches vertical touch screen on mobile control desk
  • Modern and user-friendly HMI
  • Programming up to 4 programs in cascading sequence

TECHNICAL DESCRIPTION

  • Structure : Monobloc structure in machinewelded steel and moving gantry in machine-welded aluminium.
  • Guidance : Grinded rails and preloaded ball bearings with NRII corrosion protection.
  • Transmission : Transmissions by coated helical rack and pinion on X and Y axes and by ball screw on Z axis.
  • Motorisation BRUSHLESS motors with absolute encoders on all axes.



DIMENSIONS



  PUREJET 1012 PUREJET 2012 PUREJET 4020
X axis travel in mm 1050 2050 4050
Y axis travel in mm 1220 1220 2050
Z axis travel in mm 150 150 220
Maximum material width on table 1240 1240 2070
Length in mm (pumps not included) 1800 2850 5220
Width in mm 1995 1995 2950
Height in mm 1740 1740 2495
Average weight in kg 1000 1400 3750



HP PUMPS 4136 BARS



  MHP 1040 MHP 2040 MHP 3040
Power HP/ kW 10 HP / 7,5 kW 20 HP / 15 kW 30 HP / 22 kW
Maximum pressure 4136 bars 4136 bars 4136 bars
Advised working pressure 3800 bars 3800 bars 3800 bars
Maximum flow litres/minutes at pressure 3800 bars 0,86 l/min 1,62 l/min 2,45 l/min
Pump capacity at 3800 bars:
max. number of heads/max. nozzle diameter
2 / 0,10 mm
or 1 / 0,15 mm
2 / 0,15 mm 3 / 0,15 mm
Pump capacity at 3000 bars:
max. number of heads/max. nozzle diameter
1 / 0.18 mm
or 2 /0.12 mm
1 / 0,25 mm
or 2 / 0,18 mm
1 / 0,33 mm
or 2 / 0,22 mm
or 3 / 0,18 mm
230V single phase power supply a
nd required Amperes per phase (pump only)
38 A non available non available
400V three-phase power supply and required Amperes per phase
(machine + pump)
3 x 16 A 3 x 29 A 3 x 45 A
Pump module overall dimensions (L x W x H) in mm 1600 x 800 x 1300 1600 x 800 x 1300 1600 x 800 x 1300
